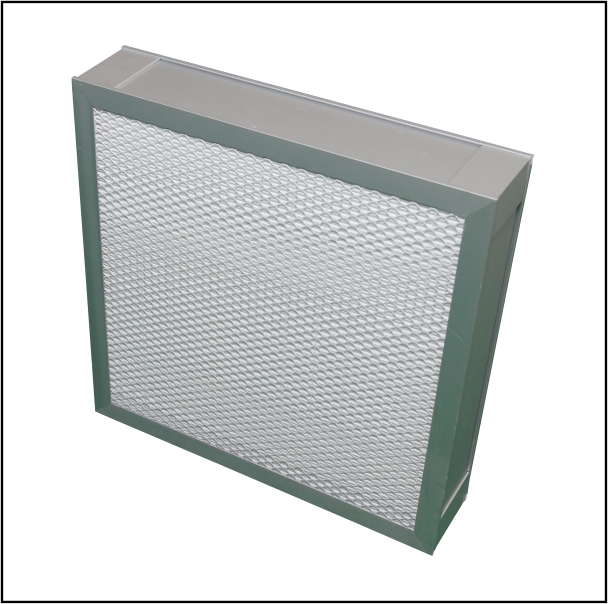

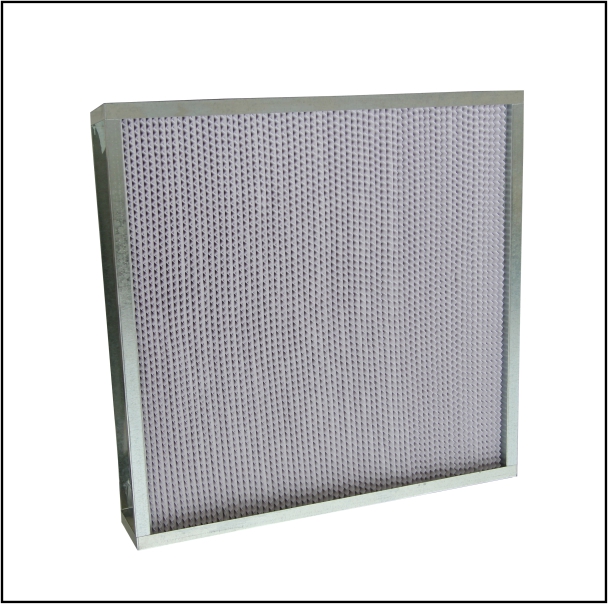

Air filter

High-humidity-resistant-high-efficiency-filter

Product description: The high-efficiency and high-humidity air filter uses special moisture-proof glass fiber filter paper as the filter material, and the special rubber sheet paper is used as the separator and the alumin
INQUIRY EMAIL

Features:
1. High-humidity-resistant separator High-efficiency filter is mainly used to filter airborne particles above 0.3um, and is used as the end filtration of various filtration systems.
2. The filter material is made of high-humidity and ultra-fine glass fiber filter paper, separated by aluminum foil board. Corrugated paper separators or aluminum partitions maintain an equidistant spacing between each pleat, allowing airflow to pass easily, ensuring efficient use of the filter and increased strength.
3. The filter is sealed around the filter with a special sealant to ensure the integrity of the entire filter.
4. It has the characteristics of high efficiency, low resistance, large dust holding capacity and high humidity resistance.

Applicable places:

It can be used for a long time in 100% RH environment. It is suitable for high temperature and humidity environments such as normal temperature and normal pressure, especially for infusion production in the pharmaceutical industry.

Technical Parameter

Model	Dimensions WDH（mm）	Rated air volume（m³/h）	Allow moisture content	Initial resistance（Pa）	Filtration efficiency（%）	Dust holding capacity（g）
GKA-3S-C	48448470	900	≤100	≤245	Class A: ≥99.995 Class B: ≥99.98	226
GKA-5S-C	72648470	1350				339
GKA-8S-C	96848470	1800				452
GKA-12S-C	61061070	1300				360
GKA-15S-C	91561070	1900				540
