Purification equipment

FFU

The blower adopts centrifugal blower special for FFU, with features such as long life, low noise, no maintenance, slight vibration and stepless speed regulation.
The flow with reliable quality has service life of more than 50,000 hours.

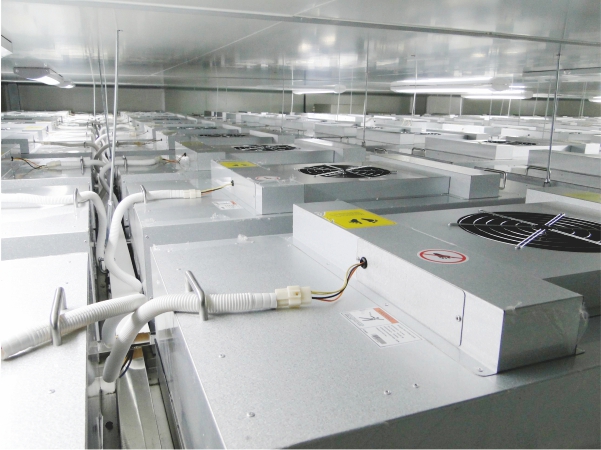

t is especially suitable for assembling super clean production line. Single-set use or multi-set series connection into Grade 100 assembly line may be arranged according to craftsmanship requiremen
Shell structure is made from the materials selected, namely stainless steel, aluminum alloy, and cold-roll steel sheets, with light weight, corrosion resistance, rust protection and elegant appeara
Product description:
INQUIRY EMAIL

Product description：

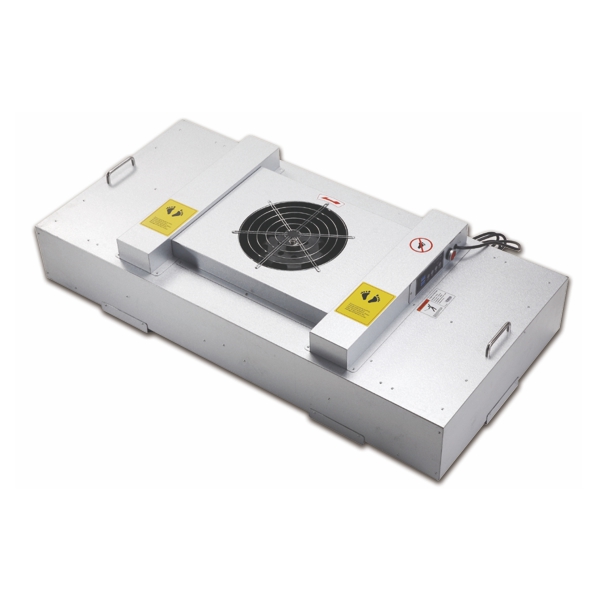

FFU (fan filter unit) adopts latest American technology, and is applicable to obtain a high grade of clean environment in various environments. It provides high quality clean air for clean rooms and microenvironments different in size and cleanliness. The unit adopts wholly flexible design, being able to easily match with any ceiling framework so as to meet the requirement for Grade 100, 10 and 1 cleanliness. During reconstruction and renewal of newly-built clean rooms and clean workshops, it not only can improve cleanliness grade and reduce noise and vibration, but also can significantly reduce cost of construction. With easy install and maintain, it is the ideal component for clean environment.

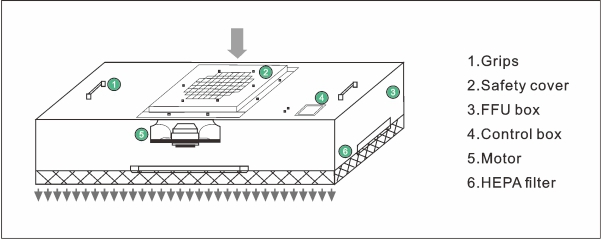

FFU outlet diagram

Technical Parameter

Model Parameter	FFU-HA24	FFU-HA23	FFU-HA22
Overall dimensions (mm)	1175×575×340	1175×1175×340	575×575×340
Surface wind speed (m / s)	0.35～0.45	0.35～0.45	0.35～0.45
Noise db (A)	48～53	48～53	48～53
HEPA filtration efficiency	≥99.99（φ0.3μm）
HEPA filter specifications	1170×570×70	870×570×70	570×570×70
Power (Hz)	AC,220V/50Hz
Power (W)	110-220	100-180	90-150
Machine residual pressure (Pa)	50-130
