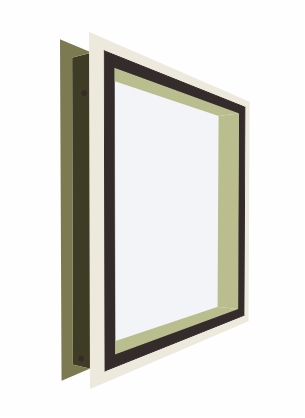

Double-glazed fixed window

Double-layer insulating glass fixed window

Sound insulation:

To meet people's needs for lighting, viewing, decoration, and environmental protection, generally hollow glass can reduce noise by about 30 decibels, while insulating glass filled with inert gas can be reduced by about 5 decibels on the original basis. Reduced 80 dB of noise to 45 dB.

Has good thermal insulation performance:

K value of heat conduction system, K value of a single piece of 6mm glass is 5.75kcal / mh ° C, and generally K value of hollow glass is 1.4-2.9 kcal / mh ° C. The K value of the hollow glass of the sulfur gas can be reduced to 1.19kcal / mh ℃. The argon gas is mainly used to reduce the K value of heat conduction, and the sulfur fluoride gas is mainly used to reduce the noise dB value. The two gases can be used independently. Can also be mixed and used in a certain proportion.

Anti-condensation:

In the environment with a large temperature difference between indoor and outdoor in winter, condensation will occur on single-layer glass doors and windows, and no condensation will occur when insulating glass is used.

Double-glazed fixed window (matching mechanism plate)

Material:

Aluminum alloy frame finished window, stainless steel frame finished window, steel frame finished window:

Thickness:

50mm (conventional), 75mm, 100mm can be matched with the mechanism board.

Shape:

right black edge, right white edge, inner corner.
